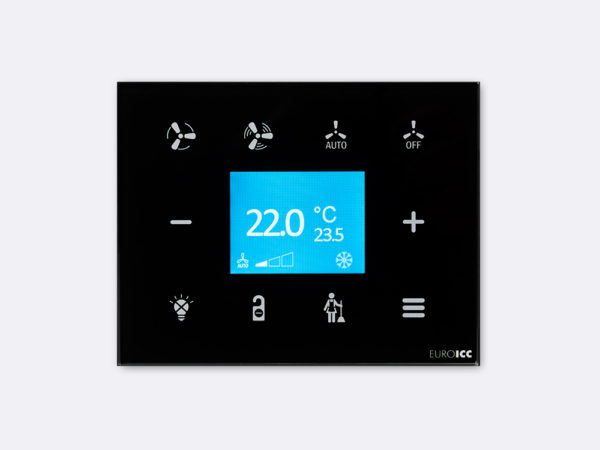

Remote Display Unit RG.RDA.11

ACTUAL PRICE ON REQUEST

Contact us »

2.44″ QVGA color display
10 capacitive keys with bicolor backlight
Embedded temperature probe
High level of flexibility thanks to a wide range of IO resources
Configuration, programming and debugging is done using PC based tool through USB port
Resource sharing between controllers through BACnet network. Data sharing is performed without intervention of the supervisory system
Jumper selectable standard polarizing and termination resistors on RS485 terminal

Description

RG.RDA.11 is a programmable remote display unit. It can be used for Guest Room Management System, Smart Hotel Control, Home Automation and Building Automation Systems.

Device features QVGA (320x240) TFT color display, 10 capacitive keys with two color dimmable backlight and embedded temperature probe.

The device communicates with the rest of the system using RS485 port.

The device can provide additional functionality thanks to a collection of analog and digital inputs and outputs.

As a part of EUROICC’s Guest Room Management System, Programmable Room Touch Panels represent a cutting edge solution in smart management.

Additional information

Electrical Specifications

title

Power supply

Nominal: 24 VDC, 1W
Voltage range: 12 … 30VDC

Communication Chanel

title

RS485

BACnet MS/TP or Modbus Slave RTU/ASCII. Programmable baud rate (9600, 19200, 38400, 76800, 115200), Jumper selectable use of termination and polarization resistors

USB

USB device, mini USB connector, service port

Inputs

title

Embedded temperature probe

Potential free inputs

Voltage inputs 0-10 V

Outputs

title

Transistor outputs 24 VDC/100 mA

Voltage outputs 0-10 V, 10 mA max

Additional Specifications

title

Operating temperature

0.. +55 °C

Storage temperature

-30.. +80 °C

Operating humidity

max 95% r.H., no condensation

Protection degree

IP20

Mounting

Wall mounting, for indoor use only

Dimensions

Built in: 72x53x35 mm
Front panel: 130x102x12

Weight

200 g

Downloads

Documentation

Technical Data Sheet for REMOTE DISPLAY UNIT RG.RDA.11

REMOTE DISPLAY UNIT RG.RDA.11

Download
