Keypad Unit RG.KTA.10

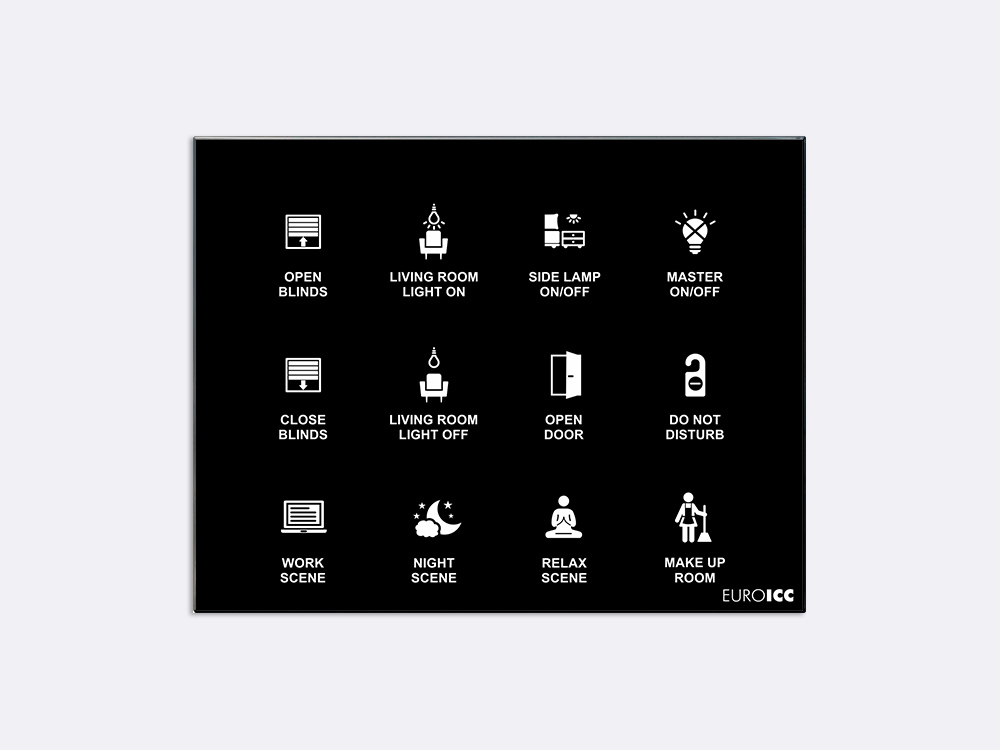

Smart Programmable Intelligent wall touch panel for Guest Room Management System, Smart Hotel Control, Home Automation and Building Automation – RD.KTA.01 – Customizable Intelligent wall touch panel designed for wide range of Building Automation and Guest Room Management System tasks

Smart Programmable Intelligent wall touch panel for Guest Room Management System, Smart Hotel Control, Home Automation and Building Automation - RD.KTA.01 - Customizable Intelligent wall touch panel designed for wide range of Building Automation and Guest Room Management System tasks

Smart Programmable Intelligent wall touch panel for Guest Room Management System, Smart Hotel Control, Home Automation and Building Automation - RD.KTA.01 - Customizable Intelligent wall touch panel designed for wide range of Building Automation and Guest Room Management System tasks

Smart Programmable Intelligent wall touch panel for Guest Room Management System, Smart Hotel Control, Home Automation and Building Automation - RD.KTA.01 - Customizable Intelligent wall touch panel designed for wide range of Building Automation and Guest Room Management System tasks

Keypad Unit RG.KTA.10

ACTUAL PRICE ON REQUEST

Contact us »

12 capacitive keys with bicolor backlight
Configuration, programming and debugging is done using PC based tool through USB port
Resource sharing between controllers through BACnet network. Data sharing is performed without intervention of the supervisory system
Jumper selectable standard polarizing and termination resistors on RS485 terminal

Category: Room units

Description

RG.KTA.10 is a programmable keypad unit designed for Guest Room Management System, Smart Hotel Control, Home Automation and Building Automation. It can be used as user interface in various automation systems.

Devices feature 12 capacitive keys with two color dimmable backlight.

The RG.KTA.10 communicate with the rest of the system using RS485 port.

As a part of EUROICC’s Guest Room Management System, Programmable Room Touch Panels represent a cutting edge solution in smart management.

Additional information

Electrical Specifications

title

Power supply

Nominal: 24 VDC 1W
Voltage range: 12 … 30VDC

Communication Chanel

title

RS485

BACnet MS/TP or Modbus Slave RTU/ASCII. Programmable baud rate (9600, 19200, 38400, 76800, 115200), Jumper selectable use of termination and polarization resistors

USB

USB device, mini USB connector, service port

Inputs

title

Potential free inputs

2

Resistance measuring inputs for NTC temperature probe

2

Outputs

title

Transistor outputs 24 VDC/100 mA

4

Voltage outputs 0-10 V, 10 mA max

2

User Interface

title

Capacitive keys

12

Additional Specifications

title

Operating temperature

0.. +55 °C

Storage temperature

-30.. +80 °C

Operating humidity

max 95% r.H., no condensation

Protection degree

IP20

Mounting

Wall mounting, for indoor use only

Dimensions

Built in: 72x53x35 mm
Front panel: 130x102x12

Downloads

Documentation

Technical Data Sheet for RF KEY PAD UNIT RG.KTA.10

RF KEY PAD UNIT RG.KTA.10
