BACnet PLC - C2.DOM.12

BACnet PLC – C2.DOM.12

  • Possibility to store operating plans in non-volatile memory
  • Programming is done using PC application
  • Configuration, programming and debugging through USB port
  • Resource sharing between controllers through BACnet network. Data sharing is performed without intervention of the supervisory system
  • RTC (real-time clock) with auxiliary power supply
  • Stand alone operation option
  • DIP switch selectable standard polarization and termination resistors on primary communication port
Category: .

Product Description

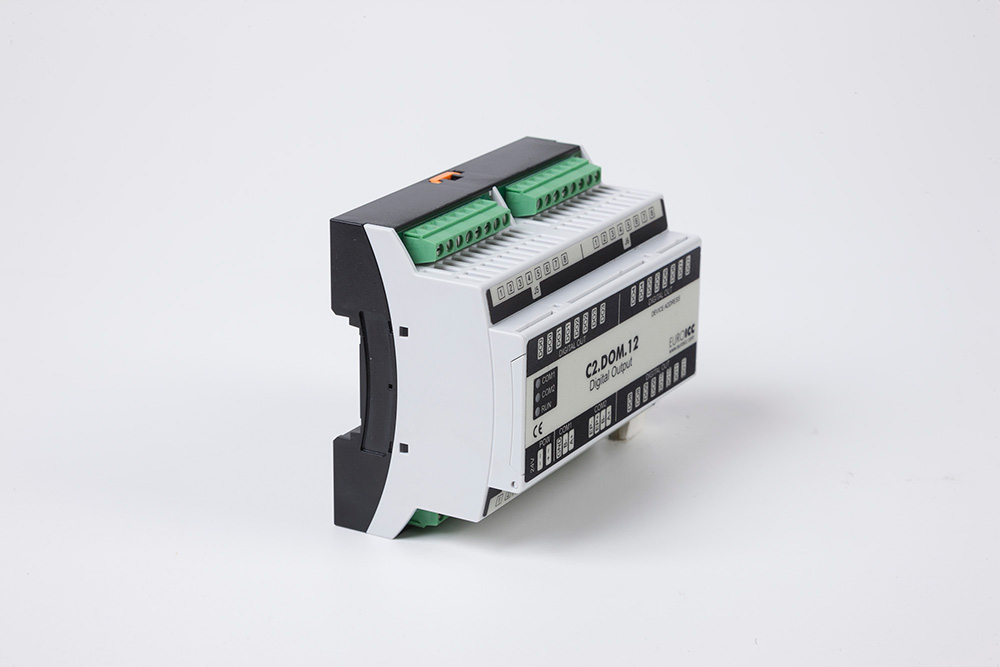

Digital output BACnet PLC - C2.DOM.12 is BACnet programmable digital output controller designed for a wide range of tasks in building automation, Smart Home and Guest Room Management System, which can be used as a remote field output in any BACnet and/or Modbus network.

Additional Information

Electrical Specifications


Power supply

24 VDC, 8 W

Communication Channel


RS485 primary port

BACnet MS/TP or Modbus Slave RTU/ASCII. Programmable baud rate (9600, 19200, 38400, 76800, 115200), DIP switch selectable use of termination and polarization resistors

RS485 expansion port

Modbus Master RTU. Programmable baud rate (9600, 19200, 38400, 76800, 115200) and parity. DIP switch selectable use of termination resistor. Power supply output: 20 VDC, 100 mA


USB device, mini USB connector, service port

Digital Outputs


Independent NO relays, 250 VAC/5A


Additional Specifications


Operating temperature

0.. +55°C

Storage temperature

-30.. +80°C

Operating humidity

max 95% r.H., no condensation

Protection degree



DIN rail, for indoor use only

250 g
107.6 × 90 × 62.2 mm



Digital output C2.DOM.12 can be used in remote fields IO in any Bacnet and/or Modbus network. Additional programming feature can be used in additional user defined output.
