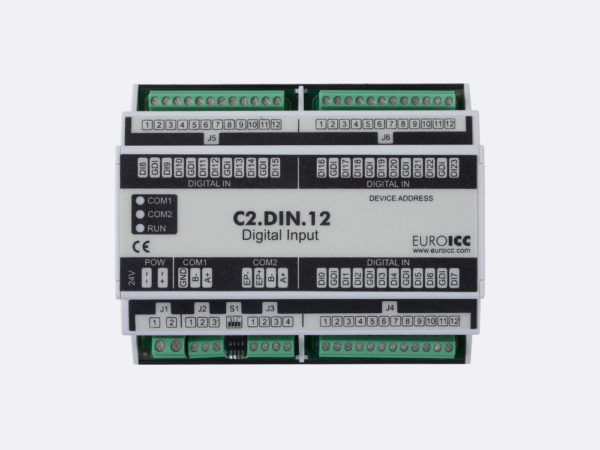

BACnet PLC – C2.DIN.12

Programming is done using PC application
Configuration, programming and debugging through USB port
Resource sharing between controllers through BACnet network. Data sharing is performed without intervention of the supervisory system
RTC (real-time clock) with auxiliary power supply
Stand alone operation option
DIP switch selectable standard polarization and termination resistors on primary communication port

Description

Digital input BACnet PLC - C2.DIN.12 is BACnet programmable digital input controller designed for a wide range of tasks in building automation, Smart Home and Guest Room Management System that can be used as a remote field input in any BACnet and/or Modbus network.

Additional information

Electrical Specifications

title

Power supply

24 VDC, 4 W

Communication Channel

title

RS485 primary port

BACnet MS/TP or Modbus Slave RTU/ASCII. Programmable baud rate (9600, 19200, 38400, 76800, 115200), DIP switch selectable use of termination and polarization resistors

RS485 expansion port

Modbus Master RTU. Programmable baud rate (9600, 19200, 38400, 76800, 115200) and parity. DIP switch selectable use of termination resistor. Power supply output: 20 VDC, 100 mA

USB

USB device, mini USB connector, service port

Digital Inputs

title

Potential-free inputs

Additional specifications

title

Operating temperature

0.. +55°C

Storage temperature

-30.. +80°C

Operating humidity

max 95% r.H., no condensation

Protection degree

IP20

Mounting

DIN rail, for indoor use only

Weight

250 g

Dimensions

107.6 x 90 x 62.2 mm

Downloads

Documentation

Digital input C2.DIN.12 can be used in remote fields IO in any Bacnet and/or Modbus network. Additional programming feature can be used in additional user defined input.
