BACnet PLC - M2.DOM.02

BACnet PLC – M2.DOM.02

  • 12 NO relay outputs
  • Fully separated outputs
  • Internaly powered relay coils
  • LED indication of the output circuits state
Category: .

Product Description

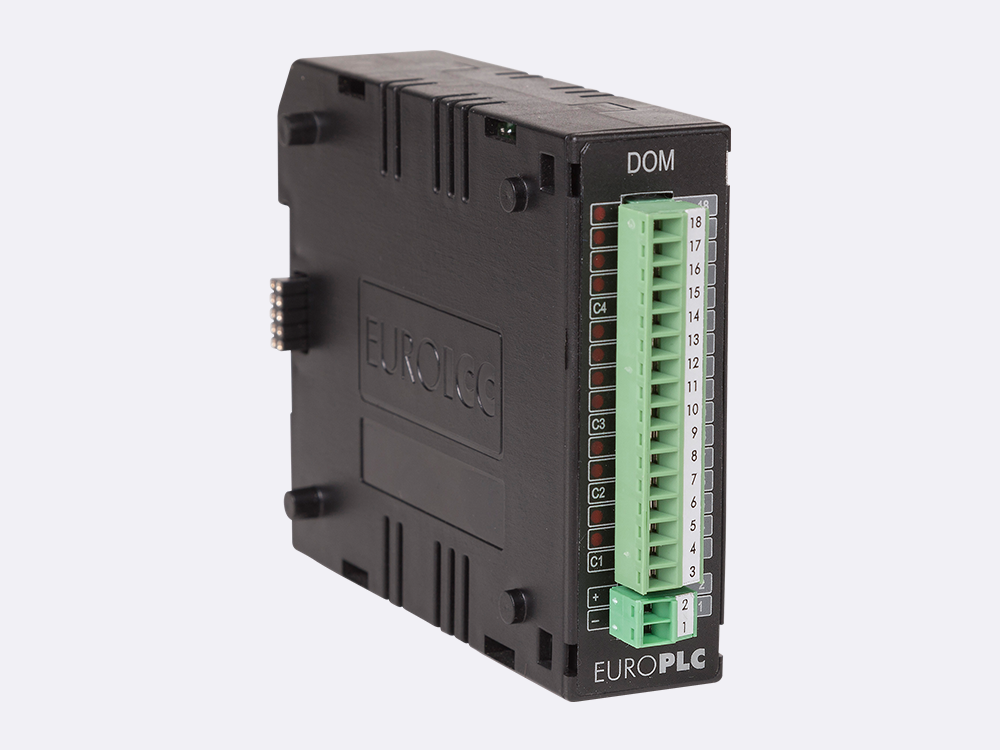

Digital output module M2.DOM.02 has 12 normally open relay outputs with LED indication of the state in the output circuit.

These output contacts are grouped into four groups, each group with common pole.

Relay coils are powered internally from the PLC bus excluding the need for an external power supply, but reducing the maximal number of modules in configuration.

During the CPU module failure the outputs are in off state.

Module is compliant with: EN 61131-1:2003, EN 61131-2:2003.

Additional Information

Digital Output Characteristics

title

Number of outputs

12 (grouped 2, 2, 4, 4)

Type of outputs

Relay

Output voltage range

30 VDC / 125 VAC

Output current

1 A (30 VDC) / 0.5 A (125 VAC) Max

Operate/release time

5 ms

Relay lifetime

106 (resistive load 125 VAC, 62.5 VA)

Galvanic isolation

Yes, 1 KV (1 min)

Additional Specifications

title

Operating temperature

0 .. 55℃

Storage temperature

-30℃ .. 80℃

Relative humidity

max 95% r.H., no condensation

Protection degree

IP20

EBUS consumption

450mA (all outputs on)

Weight
120 g
Dimensions
108 × 86 × 27 mm

Documentation

Technical Data Sheet for M2.DOM.02
